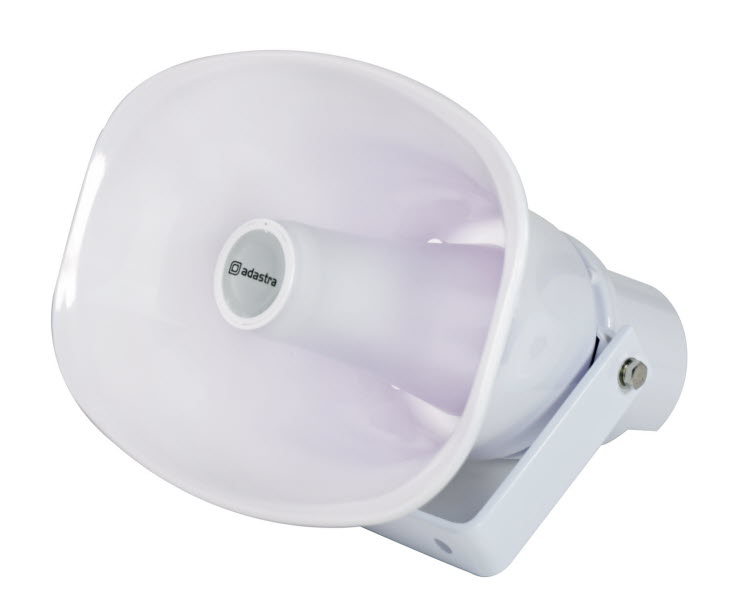

Adastra FH30V 30W Fire-Rated Horn Speaker – IP66 Weatherproof, EN54-24 Certified

Adastra
443-247
5015972226933
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • More
  • Specifications

30 Watt Rectangular Horn Speaker.

Suitable for both 8 Ohm and 100 volt line applications.

Transformer tapped @ 1.9W, 3.8W, 7.5W, 15W

Suitable for the reproduction of speech.

IP66 Rating.

EN54-24 certified

The Adastra FH30V is a high-performance 30W horn speaker designed for critical voice announcements and alerts in demanding environments. Its 5VB fire-rated ABS housing and IP66 weatherproof rating ensure durability and compliance with safety standards. The speaker offers flexible operation with 100V, 70V, or 8 Ohm settings, and features a ceramic terminal block with a thermal fuse for added protection. Surface mounting is facilitated by a stainless adjustable U-bracket, making it suitable for various installations.

The Adastra FH30V is engineered for environments where reliable and clear audio announcements are essential. Its fire-resistant and weatherproof design makes it particularly suitable for:


  • Commercial and industrial facilities

  • Public address systems in outdoor venues

  • Transportation hubs and parking areas

  • Construction sites and large open spaces

  • Emergency and evacuation systems


Its robust construction ensures consistent performance in challenging conditions, providing dependable audio communication where it's needed most

Enhance your audio communication systems with the Adastra FH30V Horn Speaker, offering powerful performance and durability for a wide range of applications.


Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a powder-coated steel adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
Construction ABS
Power (RMS) 30 W
Tappings

1.9W, 3.8W, 7.5W, 15W (100V) & 8 Ohms

Sensitivity 113dB
Impedance 8 ohms
Frequency Response 300Hz - 6.5kHz
IP Rating IP66
Cable Length mm
Dimensions 300 x 282 x 203mm
