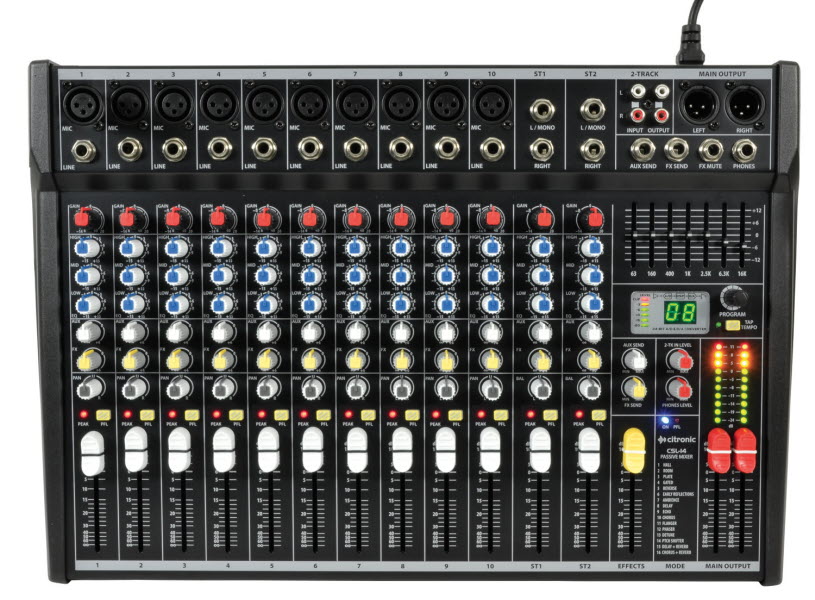

Citronic CSL-14 14-Channel Compact Analogue Mixer with DSP Effects
Citronic
445-782
5015972196229
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

10 x Microphone / Line Level Channels.

2 x Stereo Music Channels (Line Level).

Each Channel has a 3-Band EQ.

48V Phantom Power available.

Overall 7-Band Graphic Equaliser.

24-bit 16 program DSP effects.

Balanced XLR outputs.

IEC mains input connection.

The Citronic CSL-14 is a versatile 14-channel compact analogue mixer, ideal for both live performances and studio recordings. Featuring 10 balanced XLR/TRS mic/line inputs and 2 stereo line inputs, each channel offers a 3-band EQ and aux send for precise audio control. The built-in 24-bit DSP processor provides 16 preset effects, including reverbs and delays, enhancing your sound with professional-grade processing. A 7-band global graphic EQ allows for comprehensive tone shaping across all channels. With +48V phantom power support, it's compatible with condenser microphones, ensuring clear and detailed sound capture. Its compact design (475 x 320 x 107 mm) and lightweight build (4.5 kg) make it perfect for mobile setups and installations in venues with limited space.

The Citronic CSL-14 is engineered for environments where space efficiency and audio versatility are paramount. Its design makes it suitable for:

  • Live Performances and Stage Applications: Provides performers with a compact yet comprehensive mixing solution, essential for dynamic stage environments.

  • Bars and Special Events: Ensures clear and balanced audio during events, enhancing audience experience.

  • Mobile PA Systems: Its lightweight and compact design make it ideal for mobile setups, offering flexibility without compromising on features.

  • Studios: Offers precise audio control and effects processing, suitable for recording and mixing sessions.

With its robust construction, user-friendly interface, and versatile features, the CSL-14 is a reliable choice for various professional audio applications.
Power Supply: 230Vac, 50Hz (IEC)
Inputs:

mic/line 10 x XLR balanced

line 2 x 6.35mm jack balanced
Input Impedance:

2.0k Ohms (mic/line)

10k Ohms (line)
Outputs:

Main 2 x XLR balanced

Record 2 x L+R RCA

Aux Send

Headphones
Output Impedance:

<75 ohms
Effects:

16 program DSP (24-bit sigma-delta, 40kHz)
Frequency response:

20Hz-30kHz
Headphones: 6.3mm jack, 30-600 ohms
Total Harmonic Distortion (THD): <0.01%
Phantom Power: +48V (XLR inputs)
Dimensions:
475 x 320 x 107mm
