IMG Stageline MPR-1 Pre-Amplifier
Microphone pre amp with phantom power

IMG Stageline MPR-1 Pre-Amplifier

IMG Stageline
430-130
4007754180114
    Delivery time:2 - 3 Working Days
  • Description
  • Specifications

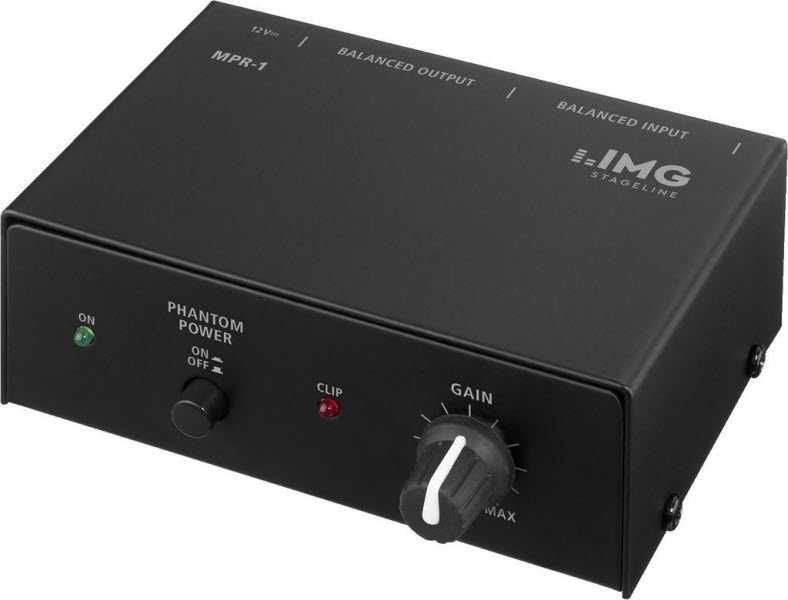

MPR-1 Signal Channel Microphone Pre-Amplifier.

1 x Input balanced XLR or 6.35mm Socket.
30 V phantom power can be activated if required.
1 x Output balanced XLR or 6.35mm Socket (Line Level)
Gain control.
LED Clip indication.
12Vdc Operation (Power adaptor included).
Robust metal housing with very good shielding qualities.

Microphone Pre-Amplifier with up to 50dB gain, will accept Jack/XLR input and has Jack/XLR output. Ideal if you need to connect a Microphone to any Line Level input.
Power Supply: 12Vdc (via Adapter) supplied
Inputs:

1 x XLR balanced

1 x 6.35mm jack balanced

Input Impedance:

10k Ohms

Outputs:

1 x XLR balanced

1 x 6.35mm jack balanced

Output Impedance:

ohms

Audio Source:


Frequency response:

10Hz - 30kHz

Signal to noise ratio (SNR):

< 58dB

Total Harmonic Distortion (THD): 0.001%
Phantom Power:

12Vdc

Dimensions: 113 x 92 x 40mm
