IMG Stageline ULM-164 Mixer
IMG Stageline
430-193
4007754182781
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

ULM-164 6-Channel Line Level Mixer.

6 x Line Level Mono Inputs.
2 x Stereo Line Level Outputs.
3-way equalizer.
LED VU meter, switchable for both outputs.
Clip LED for each channel.
Balance controls with centre click for the stereo input channels.
Extended muting function.
Adjustable headphone output.
6.35mm Jack outputs.

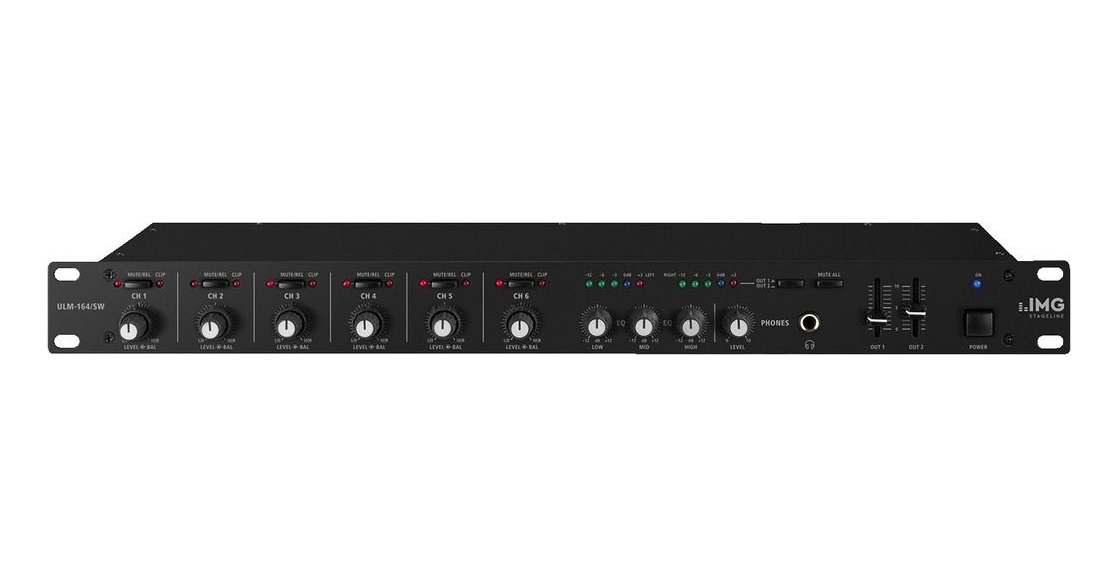

The ULM-164 is a 6-channel 1U rack mounted mixer. It has combination of stereo and mono line level inputs forCD player, tuner, effect unit etc.. The inputs can be mixed on to two master channels which have an overall 3-Way equaliser, headphone monitoring and LED VU Meters. The unit is therefore suitable for general PA applications.
Power Supply: 230Vac, 50/60Hz

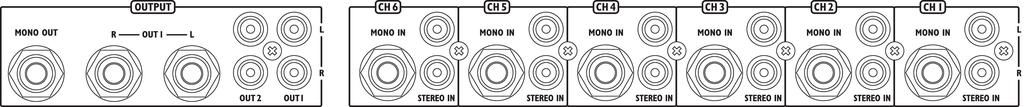

Inputs:

Line 6 x RCA L/R

Line 6 x 6.35mm jack, (unbalanced)
Input Impedance:

50k Ohms line (RCA)

25k Ohms line (6.35mm)
Outputs:

2 x RCA L/R

1 x 6.35 mm jack

1 x 6.35 mm jack (Headphone 8 ohms)
Output Impedance:

600 ohms
Audio Source:


Frequency response:

20Hz - 20kHz
Signal to noise ratio: (SNR)

69dB
Total Harmonic Distortion: (THD) 0.0005%
Phantom Power:


Dimensions: 482 x 175 x 44mm
